SCAFFOLDING SYSTEM
Hot-dip galvanized steel scaffold system with eight-connection nodes for complex-designed provisional structures, quick and simple to erect and dismantle.
The SM8 system consists of vertical members, the uprights, onto which a node made of an octagonal plate is welded every 500 mm. This node point is provided with eight shaped holes to receive fast-fitting joints welded on to the ends of ledgers, transoms and diagonals ledgers transoms and diagonals.
Characteristics:
- Great flexibility during erection
- Short erection and dismantling times
- Erection of service structures with 1800 mm, 2500 mm and 300 mm bay
- Surface protection with hot dip galvanizing treatment
Applications:
- Construction and maintenance scaffolding
- Short structures and casting supports
- Yard ladders
- Service and promotional structures

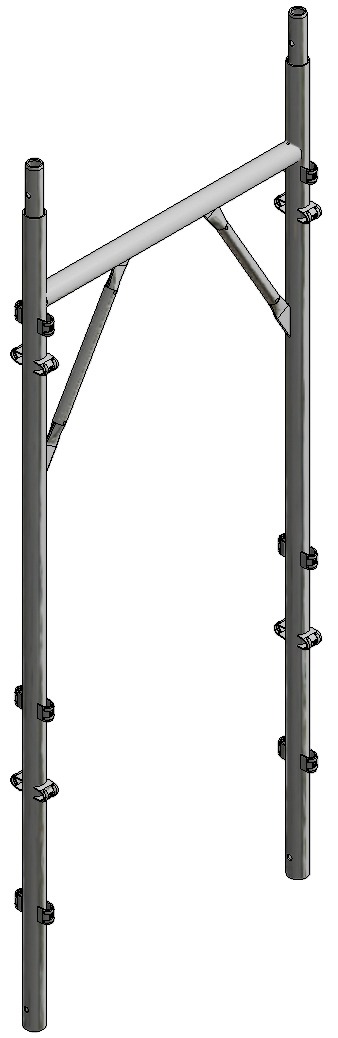

- Realpont 75 EN

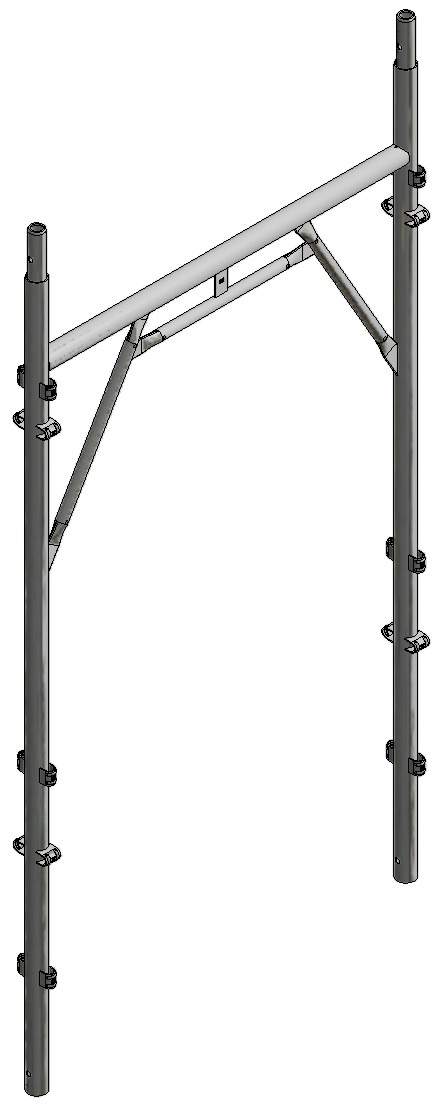

- Realpont 105 EN

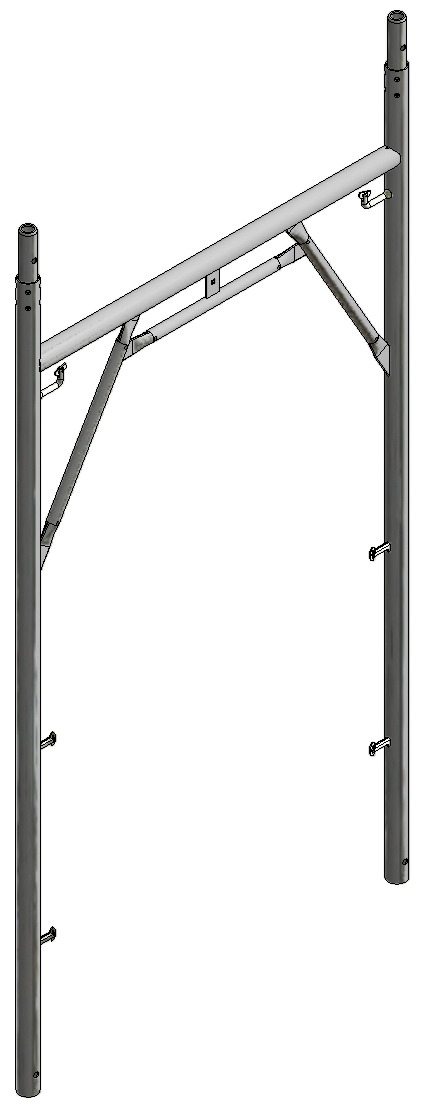

- Tel Dal T5/Uniform EN
Frame scaffolding system with bushing or pawls fittings for 1800 mm, 2500 mm or 3000 mm spans mainly indicated for construction and maintenance scaffoldings on linear facades.
![prefabricated-frame-realpont75](https://marcegaglia.pl/wp-content/uploads/2020/04/prefabricated-frame-realpont75.jpg)
![prefabricated-frame-realpont105](https://marcegaglia.pl/wp-content/uploads/2020/04/prefabricated-frame-realpont105.jpg)
![prefabricated-frame-uniform](https://marcegaglia.pl/wp-content/uploads/2020/04/prefabricated-frame-uniform.jpg)
Universal scaffold system for temporary installations and structures with cold-formed couplers and Marcegaglia certified steel tubes.
The tube-coupler system is ideal in situations that require high strength combined with flexibility of use.
